Description
|

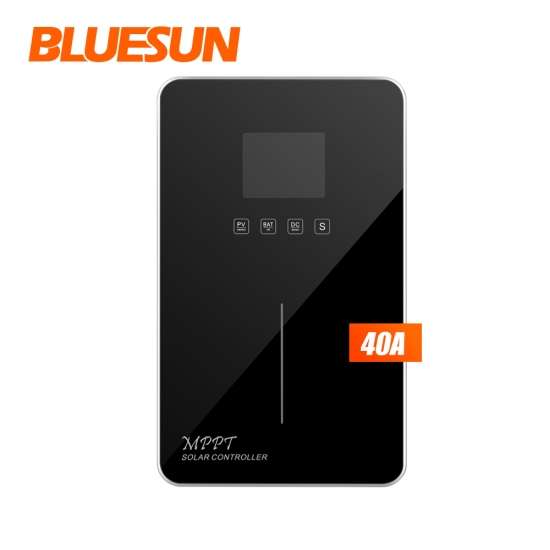

Runner 12V/24V/36V/48V-series |
R4840 |
R4850 |
R4860 |
R4880 |
R48100 |
||
|
Product category |
Controller Properties |
MPPT (maximum power point tracking) |
|||||
|
MPPT efficiency |
>99.5% |
||||||
|
Standby power |
0.5W-1.2W |
1W-1.6W |
|||||
|
Heat-dissipating method |
Forced air cooling |
||||||
|
System voltage |
Automatic identificalion of 12V/24V/36V/48V (tead-aod battery) |
||||||
|
Lithium battery system (9V-60VDC) |
|||||||
|
Configurable lithium ion battery system |
8VDC-60VDC(The standard model), 芦60VDC(Optional lithium battery activation function) |
||||||
|
Input Characteristics |
maximum input voltage(Voc.max) |
150VDC |
|||||
|
Minimum MPPT voltage(\/mppt.min) |
Reatime battery voltage + 2V |
||||||
|
Starting chargng voltage |
Reatime battery voltage + 3V |
||||||
|
Input low voltage proteclon voltage |
Reatime battery voltage + 2V |
||||||
|
Input overvoltage protection/recovery voltage |
150VDC/145VDC |
||||||
|
Rated power input |
12V system |
1300W |
|||||
|
24V system |
2600W |
||||||
|
36V system |
3900W |
||||||
|
48V system |
5200W |
||||||
|
Configurable lithium ion battery system |
504W-2016W |
630W-2520W |
756W-3024W |
1008W-4032W |
1260W-5040W |
||
|
Charge Characteristic |
Lithium battery activation function |
choosable |
|||||
|
Type of battery |
sealed lead acid, Colloid sealed lead acid, Liquid rich battery .user defined,lithium ion ballery |
||||||
|
Rated maximum charging current |
40A |
50A |
60A |
80A |
100A |
||
|
Charge Method |
Stage 3: CC (quick charging) – CV (constant voltage charging) – CF (floating charging) |
||||||
|
LOAD Characteristics |
LoadVoltage |
The same as the battery voltage |
|||||
|
Load rated current |
30A |
50A |
|||||
|
Load control mode |
Normally on/off mode, light control mode, doubte time control mode, light control delay mode |
||||||
|
|
Load low voltage protection |
10.5V(Iow voltage protection), 11V (low voltage protection recovery), adjustabte |
|||||
|
Display & Communicalon |
Display |
HD LCD color segment code display |
|||||
|
Communication |
Dual RJ45 interface/RS485 / upper computer software/WIFI module mobite phone APP/centralized monitoring |
||||||
|
Other Parameters |
Defensive Function |
Input-output over \ under voltage protection,Prevention of connection reverse protection,battery shedding protection etc. |
|||||
|
Operating ambient temperature |
-20℃-+50℃ |
||||||
|
IP level of protection |
IP21 |
||||||
|
Max. connecton size |
28mm2 |
50mm2 |
|||||
|
Recommended battery side circuit breaker |
»63A |
»80A |
»100A |
»120A |
|||
|
Net Weight (kg) |
2.15/3.05 |
5/6.15 |
|||||
|
product size/packagesize (mm) |
305×185 x 72/420 x 275x 150 |
380 x210 x 80/490x350x195 |
|||||
